Name: Cnlinko M12 Metal 7 Pin Plug Socket IP68 Waterproof Electrical Connector with Dust Cover
Brand: Cnlinko
Price: 6.07 USD

Place of Origin : Guangdong, China

Brand Name : Cnlinko

Model Number : LP-12-C07PE-03-001

Certification : UL,CE,ROHS,CCC,ISO9001

MOQ : 2

Price : $6.07-7.08

Shape : ROUND

IP level : ip68

Type : Signal

Application : Industrial

Gender : male and female, Female +male

Protection level : IP65/IP67

Pin : 7pin

Current rating(A) : 3A

Shell & Insulated Parts : High Performance Engineer Plastic

Hardware Matel : Zinc Alloy (pearl hard chromium)

Connecting mode : plug/unplug

Operating voltage : 500V

Cable Spec : 24-22AWG

Contact Now

Cnlinko M12 7 Pin plug socket IP68 Waterproof Electrical Connector with Dust Cover

Product Description

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP65/IP67
Cable specification	0.2~03mm² /24~22AWG

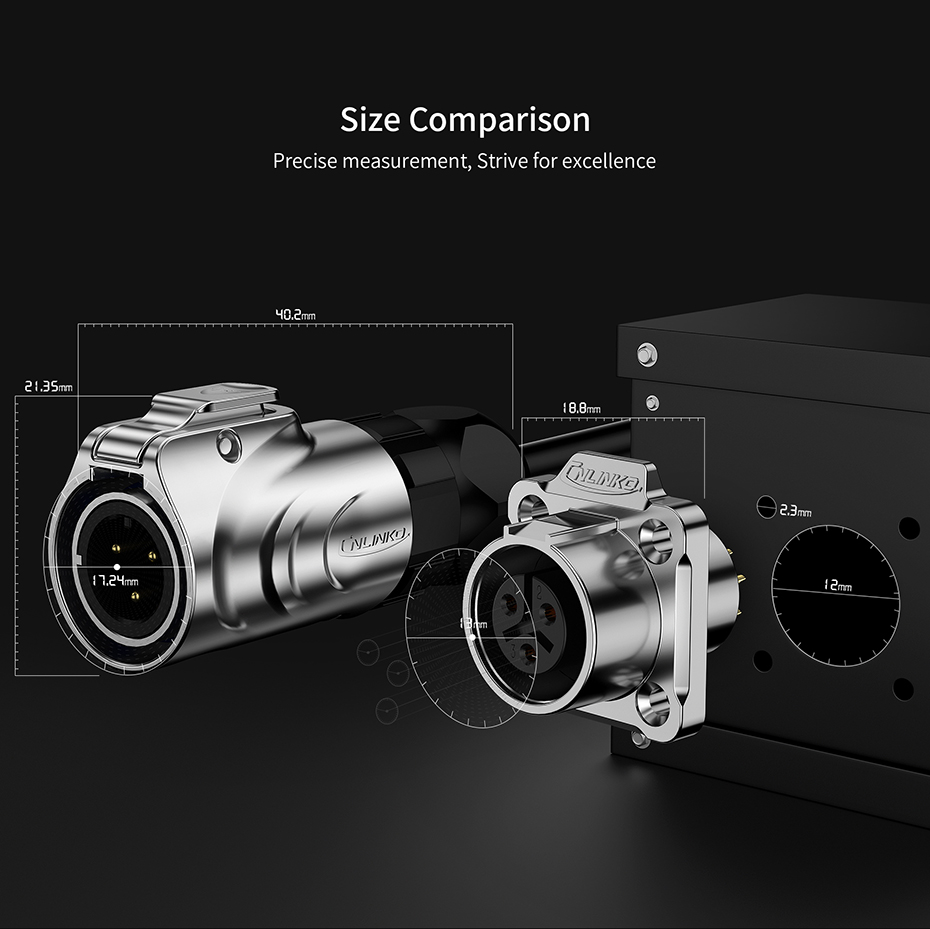

Diameter range	Φ3mm ~Φ6mm
Contact diameter×Qty	Φ0.8x7
Current rating(A)	3A
Temperature rise	/
Withstanding voltage(AC.V)1min	1500V
Contact resistance	<10mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0

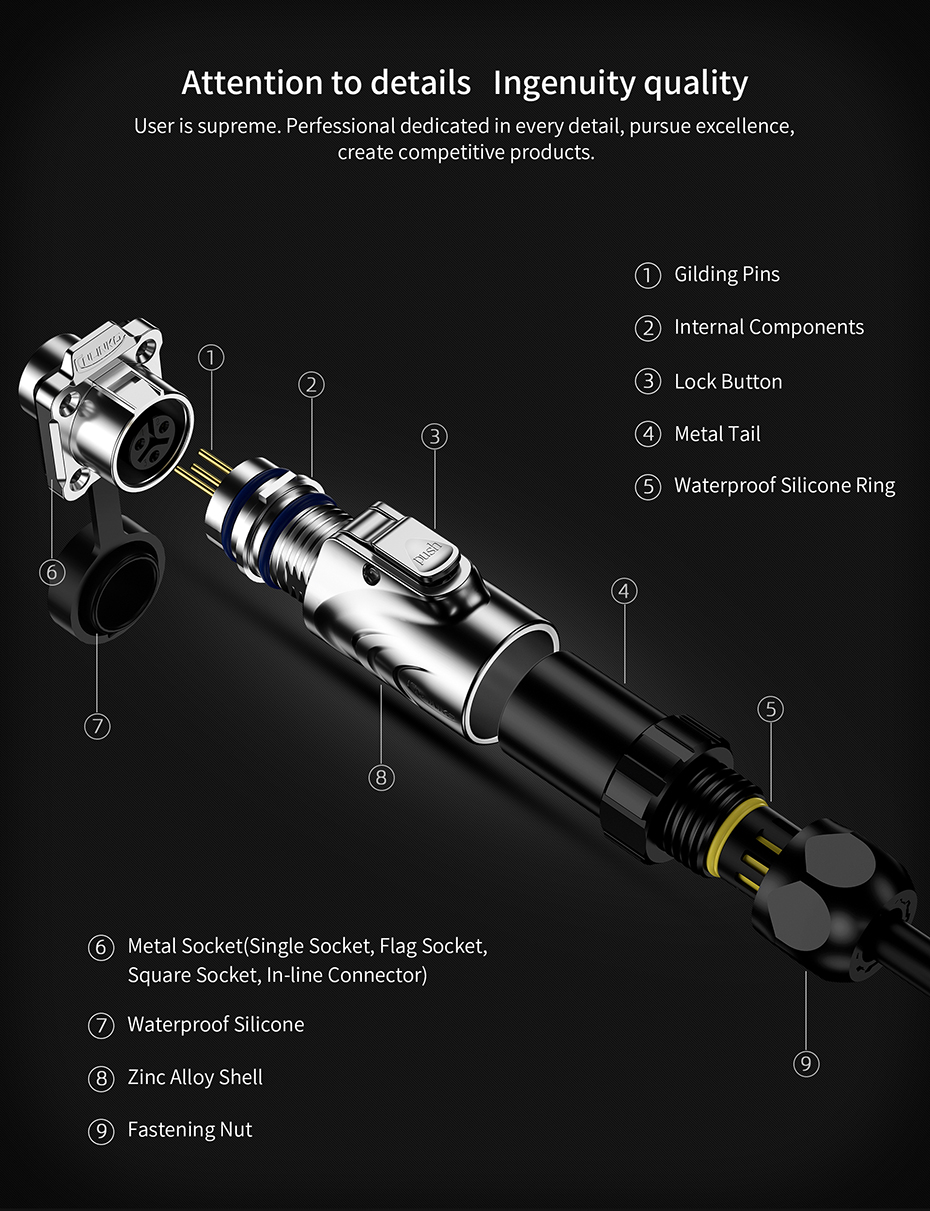

Material
Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server

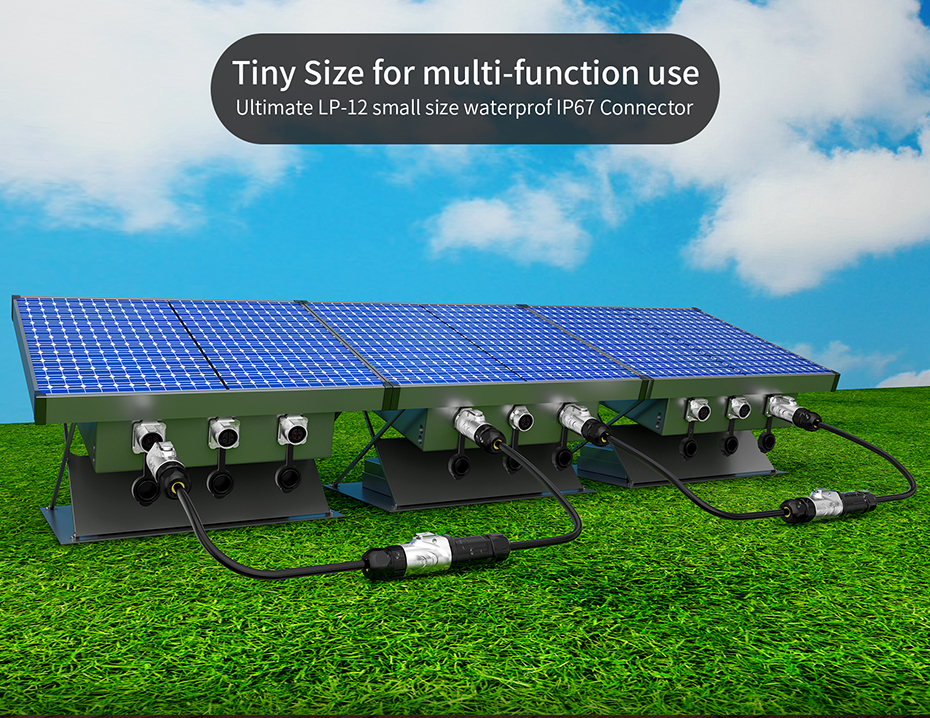

Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications
